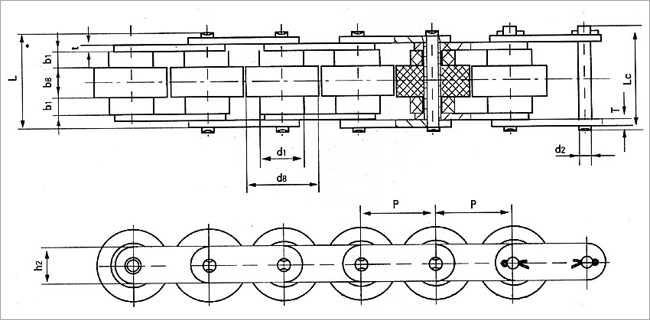

TaiLong链号 | 节距 | 滚子尺寸 | 销轴尺寸 | 链板尺寸 | 每米长重 | |||||||
P | d1 | d8 | b1 | b8 | d2 | L | Lc | h2 | T | t | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
BS25-C208A | 25.4 | 15.88 | 24.6 | 5.7 | 10.3 | 3.96 | 32.6 | 36.5 | 12.0 | 1.5 | 2.0 | 0.79 |
BS25-C210A | 31.75 | 19.05 | 30.6 | 7.1 | 13.0 | 5.08 | 40.2 | 44.3 | 15.0 | 2.0 | 2.4 | 1.36 |
BS25-C212A | 38.1 | 22.23 | 36.6 | 8.5 | 15.5 | 5.94 | 51.1 | 55.7 | 18.0 | 3.0 | 4.0 | 2.19 |
BS25-C216A | 50.8 | 28.58 | 49.0 | 11.0 | 21.5 | 7.90 | 66.2 | 71.6 | 24.0 | 4.0 | 5.0 | 4.06 |
BS30-C208A | 25.4 | 11.91 | 24.6 | 6.1 | 12.5 | 3.96 | 35.6 | 39.5 | 9.60 | 1.5 | 2.0 | 0.83 |
BS30-C210A | 31.75 | 14.80 | 30.6 | 7.5 | 15.0 | 5.08 | 43.0 | 47.1 | 12.2 | 2.0 | 2.4 | 1.27 |
BS30-C212A | 38.1 | 18.0 | 37.0 | 9.75 | 20.0 | 5.94 | 58.1 | 62.7 | 15.0 | 3.0 | 4.0 | 2.14 |
BS30-C216A | 50.8 | 22.23 | 49.0 | 12.0 | 25.2 | 7.92 | 71.9 | 77.3 | 18.6 | 4.0 | 5.0 | 3.55 |
